DNE Laser · Guangdong, China

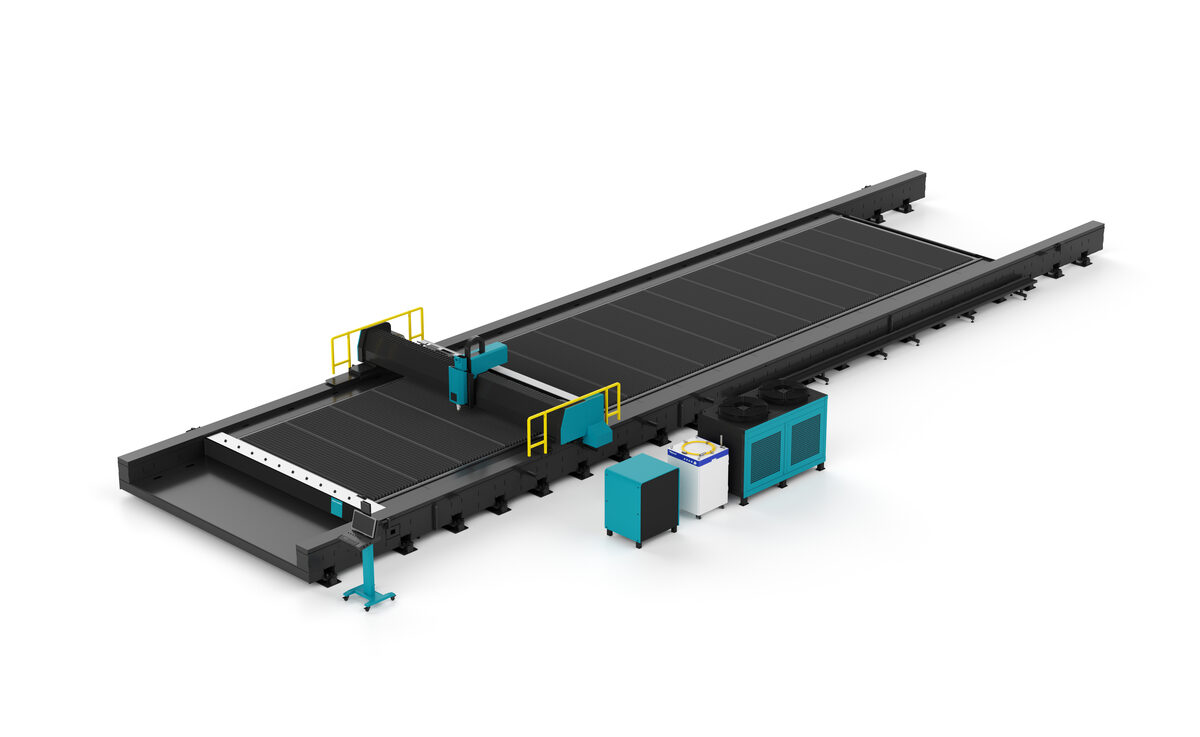

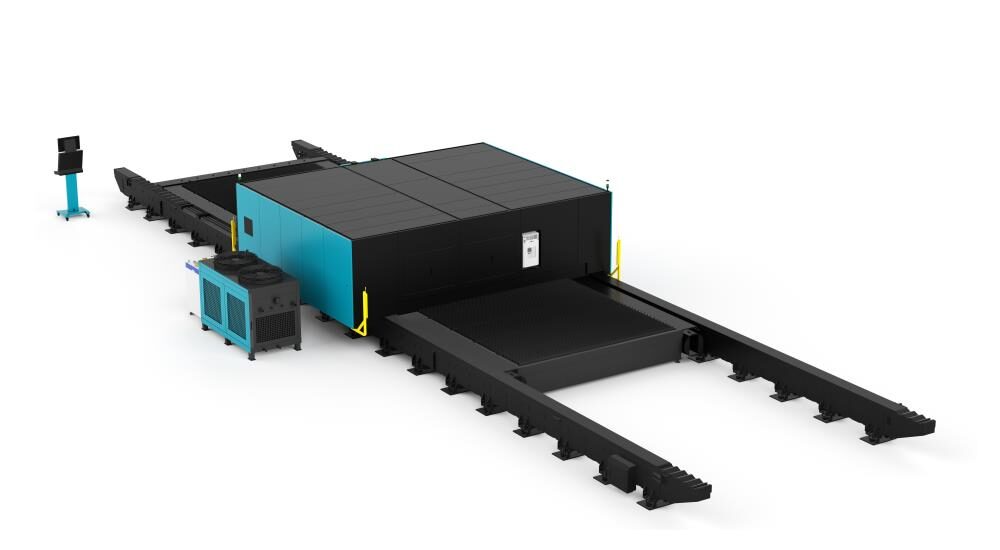

Ground-rail gantry fiber laser cutter for very large plate, 3 m to 5 m wide and 12 m to 40 m long, 12 kW to 80 kW.
Price depends on configuration, destination and delivery scope. A sourcing specialist replies by email in English or Spanish. Free to request.El precio depende de la configuración, el destino y el alcance de entrega. Un especialista responde por correo en inglés o español. Solicitar es gratis.
| Laser power | 12000 / 20000 / 30000 / 40000 / 60000 / 80000 W |
|---|---|
| Format | width 3 / 3.5 / 4 / 4.5 / 5 m; length 12-40 m |
| Max linkage acceleration | 1.4 / 1.4 / 1.2 / 1 / 1 G |
| Max positioning speed | 120 / 120 / 100 / 80 / 80 m/min |
| X/Y positioning accuracy | +/-0.15 mm per 10 m |
| Repeat positioning accuracy | +/-0.10 mm per 10 m |
| Machine power consumption | up to 70 / 110 / 140 / 170 / 250 / 320 kW |
| Bevel cutting | Optional |
Source: DNE Laser catalog. Manufacturer statement, not independently tested. Final values are confirmed in the quote.Fuente: catálogo de DNE Laser. Declaración del fabricante, sin prueba independiente. Los valores finales se confirman en la cotización.
