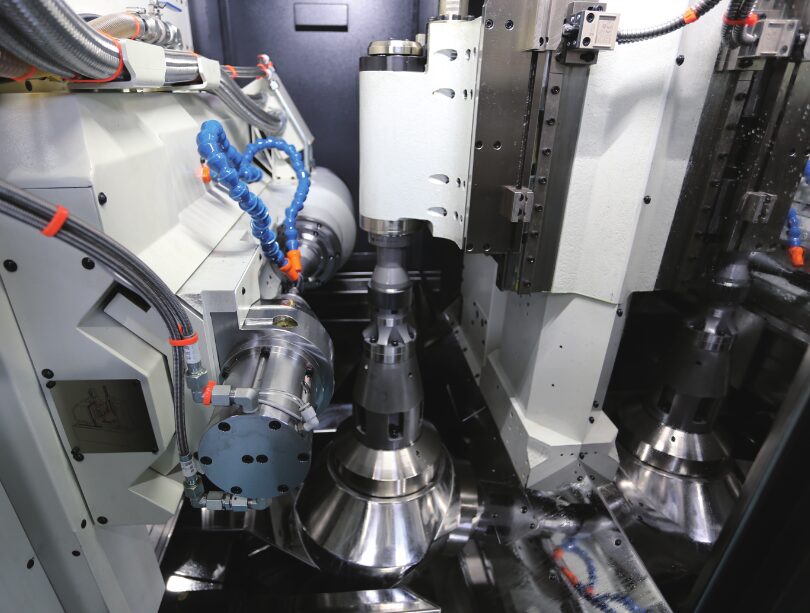

H120/H150 High-Speed High-Precision Gear Hobbing Machine
Paramount · Suzhou, Jiangsu · H80/H120/H150 series
A CNC gear hobbing machine for small and medium gears up to 150 mm workpiece diameter. Direct-drive hob head and work table give precision close to gear grinding level, for soft and hard hobbing.
Key specificationsEspecificaciones clave
- WeightPeso
- up tohasta8,500 kg18,739 lb
This listing covers a family of models. Values marked "up to" are the family maximum, not every model's specification.Esta ficha cubre una familia de modelos. Los valores con "hasta" son el máximo de la familia, no la especificación de cada modelo.
2 models in this family:2 modelos en esta familia: H120, H150
Price depends on configuration, destination and delivery scope. A sourcing specialist replies by email in English or Spanish. Free to request.El precio depende de la configuración, el destino y el alcance de entrega. Un especialista responde por correo en inglés o español. Solicitar es gratis.
ApplicationsAplicaciones
Materials and workMateriales y trabajo
Harmonic cup flexsplineHarmonic top-hat flexsplineSun gearPlanetary hard-face finish hobbing
IndustriesIndustrias
Gear manufacturingRobot reducer production
Manufacturer's feature listCaracterísticas según el fabricante
- High-precision hob head and work table, direct drive
- Rotary encoder as standard
- No backlash and high pitch accuracy
- Scraped (hand-scraped) contact surfaces for damping
- Fully enclosed, fast chip removal and low heat effect
SpecificationsEspecificaciones
| Max module (H120 / H150) | M2.5 / M3 |
|---|---|
| Max workpiece diameter, manual (H120 / H150) | 120 mm / 150 mm |
| Max table speed (H120 / H150) | 300 / 300 |
| Torque (H120 / H150) | 180 N.m / 550 N.m |
| B-axis power | 15 kW / 15 kW |
| Max table diameter (H120 / H150) | 120 / 150 |
| Hob swivel angle | ±40° / ±40° |
| Max hob diameter / length | 120/120 and 120/150 |
| Max hob shift travel | 115 / 115 |
| Max hob speed (H120 / H150) | 2500 / 3000 (5500) |
| Hob arbor taper | BT40 / BT40 |
| X-axis travel, radial (H120 / H150) | 135 / 175 |
| Z-axis travel, axial | 212 / 212 |
| Tail stock center travel | 300 mm / 300 mm |
| Electrical capacity | 35 kVA / 35 kVA |
| Machine weight | 8.5 T / 8.5 T |
Source: Paramount catalog, page 2. Manufacturer statement, not independently tested. Final values are confirmed in the quote.Fuente: catálogo de Paramount, página 2. Declaración del fabricante, sin prueba independiente. Los valores finales se confirman en la cotización.
ConfigurationsConfiguraciones
Models the manufacturer lists in this family. Choose one above to include it in your quote request, or leave it open and describe your parts.Modelos que el fabricante publica en esta familia. Elija uno arriba para incluirlo en su solicitud, o déjelo abierto y describa sus piezas.
H120H150
