Shinetek · Suzhou, Jiangsu

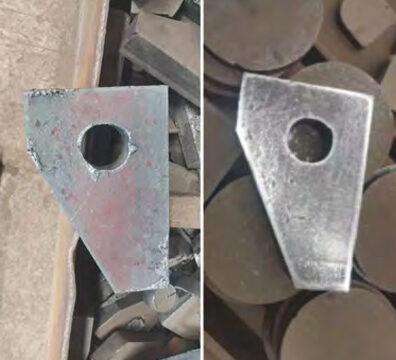

Single-side machine that removes cutting slag, deburrs and rounds edges on carbon steel plate parts cut by plasma, flame or laser; parts are held by a magnetic conveyor.
Ranges cover the models in this family. Values marked "up to" are the family maximum.Los rangos cubren los modelos de la familia. Los valores con "hasta" son el máximo de la familia.
2 models in this family:2 modelos en esta familia: STK 1000, STK 1300
Price depends on configuration, destination and delivery scope. A sourcing specialist replies by email in English or Spanish. Free to request.El precio depende de la configuración, el destino y el alcance de entrega. Un especialista responde por correo en inglés o español. Solicitar es gratis.
| Working width | 1000 / 1300 mm |
|---|---|
| Working thickness | 2-80 mm |
| Conveyor speed | 0.8-4 m/min (variable) |
| Slag hammer speed | 7.5 m/s |
| Sanding belt speed | 8-20 m/s (variable) |
| Sanding block speed | 7.5 m/s |
| Max power | 23 / 26 kW (without dust collector) |
| Compressed air | 0.6-0.8 MPa |
| Weight | 4000 / 5200 kg |
Source: Shinetek catalog. Manufacturer statement, not independently tested. Final values are confirmed in the quote.Fuente: catálogo de Shinetek. Declaración del fabricante, sin prueba independiente. Los valores finales se confirman en la cotización.
Models the manufacturer lists in this family. Choose one above to include it in your quote request, or leave it open and describe your parts.Modelos que el fabricante publica en esta familia. Elija uno arriba para incluirlo en su solicitud, o déjelo abierto y describa sus piezas.
